UV laser marking machine – Main Features

● Laser (light source): 355 nm UV laser.
● Air-cooled device, small size, 20,000 hours maintenance-free (theoretical 20,000 hours of service life).
● It requires water cooling, distilled water or pure water.
● The focused spot is extremely small, and the processing heat affected zone is small (cold light), making the material heat-receiving area smaller. Not susceptible to heat deformation, ultra-fine marking, special material marking.
● Low cost of use, better beam quality, high efficiency, low power consumption, more energy saving and environmental protection.
● Can be applied to high-end market, ultra-fine marking environment, cosmetics, pharmaceuticals, LCD liquid crystal, electronic components, communication equipment, food and medicine packaging, glass division, electronic components, metal jewelry marking.

UV Laser Marking Machine – Technical Parameters

1. Model	HRC-5WUV
   Work Area	110*110mm ( Optional )
   Laser Power	3W/5W/10W
   Fiber laser generator	Huaray
   Laser Pulse Frequency	20KHz – 200KHz
   Laser scanner	Sino-Galvo SG7110
   Red light dot	Yes
   Power supply	Taiwan MW (Meanwell)
   Wavelength	355±10nm
   Beam Quality M2	<2
   Min Line Width	0.01mm
   Min Character	0.15mm
   Marking Speed	≤10000mm/s
   Marking Depth	≤0.5mm
   Repeat Precision	±0.01mm
   Power Supply	110V /220V(±10%)/50Hz/4A
   Gross Power	<500W
   Laser Module Life	100000h
   Cooling Style	Water Cooling
   System Composition	Laser source, Control System, Industrial Computer,Vibration lens
   Working Environment	Clean and Dust Free
   Operating Temperature	10℃-35℃
   Humidity	5% to 75% (Free of Condensed Water)
   Power	AC220V, 50HZ, 10Amp Stable Voltage
   Warranty	3 years
   Dimension (cm)	104*91*151cm
   Weight (kg)	140kgs

Machine Details

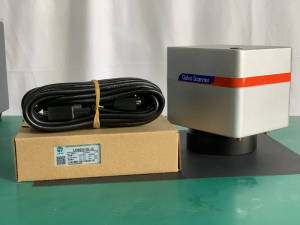

Laser Govanometer scanner

Digital Galvanometer Laser Scanning head with Fast Marking Speed.Fast response ability<0.7ms,can realize high speed marking and high precesion.

Field Lens

We use famous brand to provides precision laser,standard 110x110mm marking area,Optional 175x175mm,200x200mm,300x300mm etc.

Raycus Laser Source

We use Raycus Laser Source,A widely selectivity of operating wave-lengths,ultra-low amplitude noise,high stability and ultra-long lifetime.

EZCAD MARKING SYSTEM

The software has a red light preview function.it can mark barcodes.two-dimensional code,photo,etc.Support file with jpg,png,bmp or dxf,dst etc.It can be fully matched with the flight marking system to provide hundres of automated marking and feeding solutions to fully meet customer requirements.

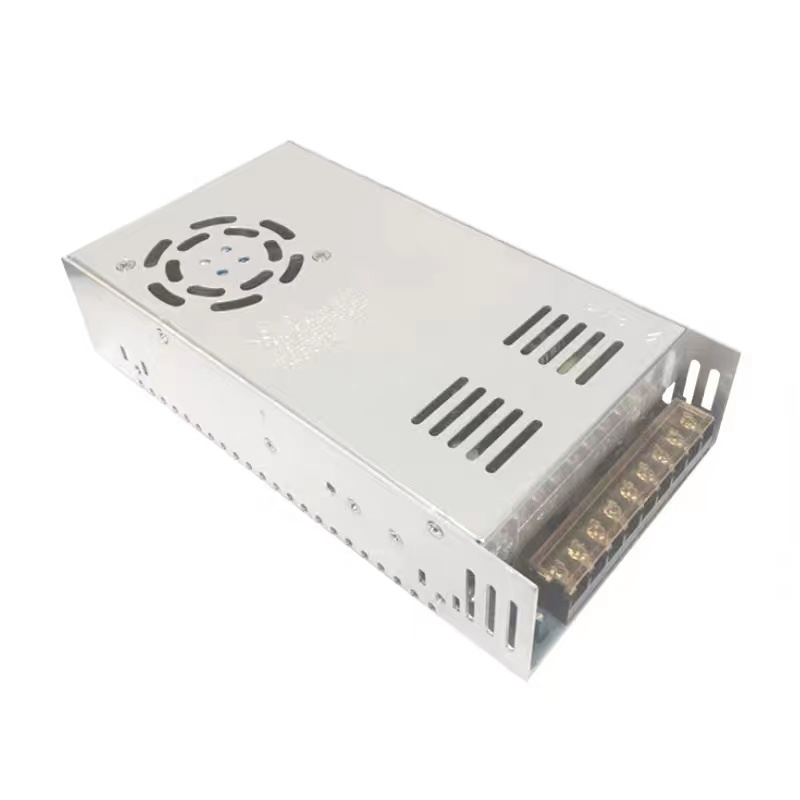

Power Source

Provide stable direct current,improve laser work performance and service life.

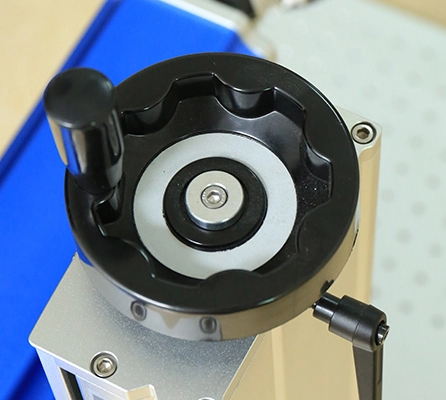

Lifting handle

High quality and stable

Adjust the up and down for different height material marking

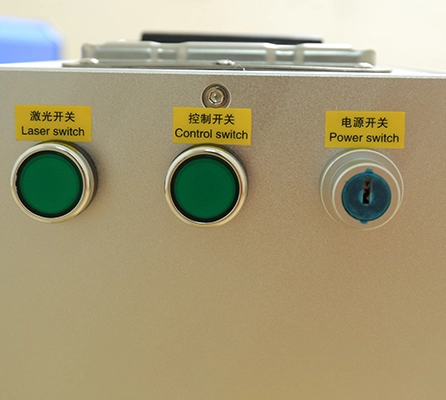

Control button

Humanized control system, easy to operate, safe and convenient, dust proof design

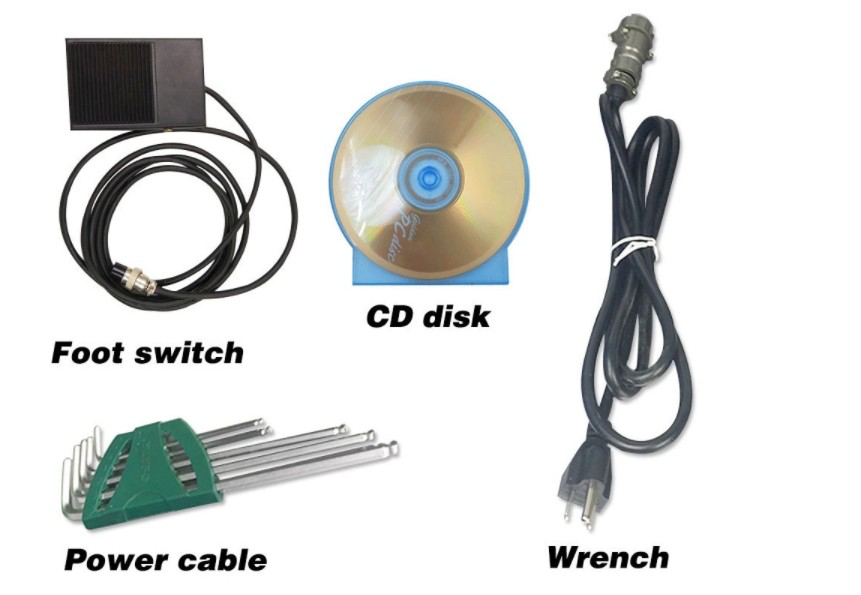

Standard Accessories

Sample Photo

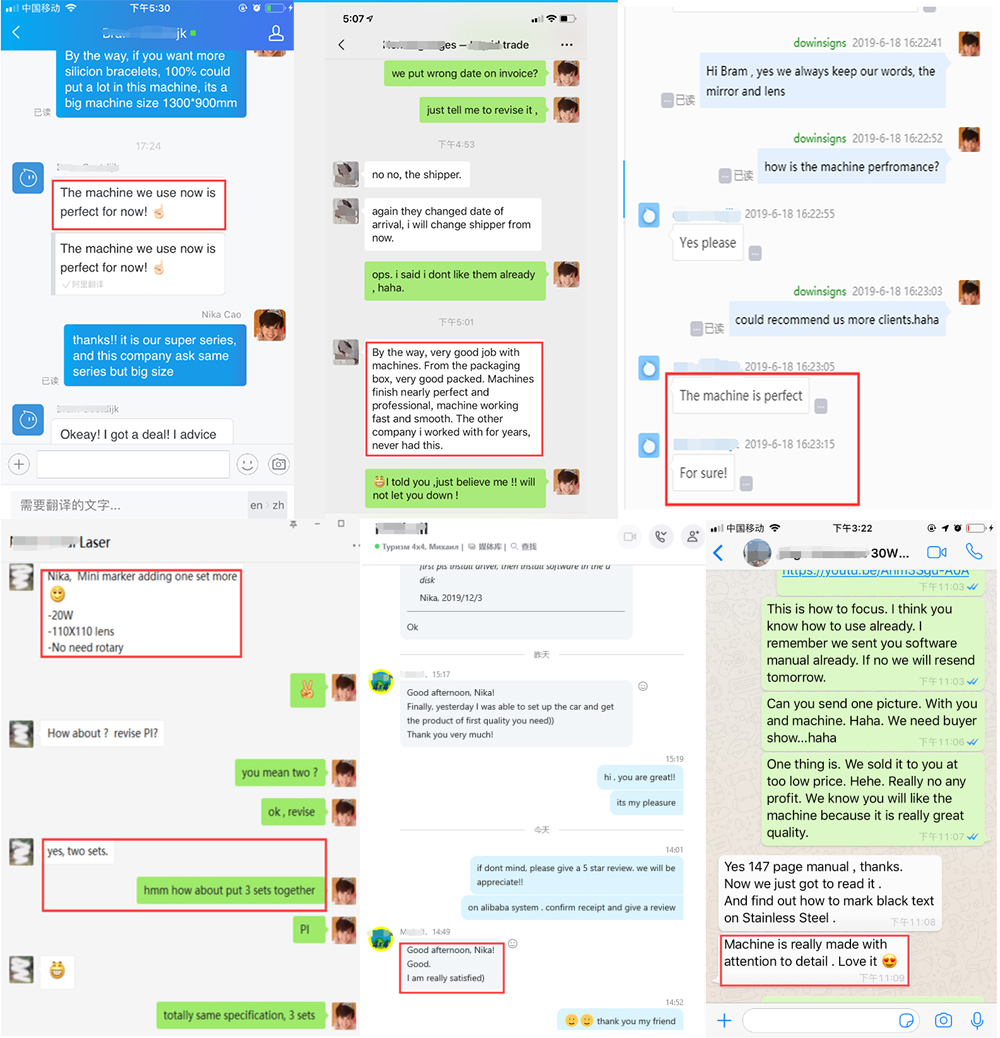

Customer Feedback
