Portable UV Laser Marking Machine
UV laser marking machine - Main Features
- Laser (light source): 355 nm UV laser
- Air-cooled device, small size, 20,000 hours maintenance-free (theoretical 20,000 hours of service life).
- It requires water cooling, distilled water or pure water.
- The focused spot is extremely small, and the processing heat affected zone is small (cold light), making the material heat-receiving area smaller. Not susceptible to heat deformation, ultra-fine marking, special material marking.
- Low cost of use, better beam quality, high efficiency, low power consumption, more energy saving and environmental protection.
- Can be applied to high-end market, ultra-fine marking environment, cosmetics, pharmaceuticals, LCD liquid crystal, electronic components, communication equipment, food and medicine packaging, glass division, electronic components, metal jewelry marking.
- UV Laser Marking Machine - Technical Parameters
| Model | HRC-3WUV | HRC-5WUV |
| Max Laser Output Power | 3W | 5W |
| Marking Format | 110*110mm | |
| Laser Wavelength | 355NM | |
| Control System Brand | JCZ EZCAD | |
| Laser Source Brand | Gainlaser | |
| Galvanometer Brand | SINO/Centry Sunny | |
| Laser Pulse Frequency | 20KHz – 200KHz | |
| Red light dot | YES | |
| Power supply | Taiwan MW (Meanwell) | |
| Beam Quality M2 | <2 | |
| Min Line Width | 0.01mm | |
| Min Character | 0.15mm | |
| Repeat Precision | ±0.01mm | |
| Power Supply | 110V /220V(±10%)/50Hz/4A | |
| Gross Power | <500W | |
| System Composition | Laser source, Control System, Industrial Computer, Vibration lens | |
| Working Environment | Clean and Dust Free | |
| Operating Temperature | 10℃-35℃ | |
| Humidity | 5% to 75% (Free of Condensed Water) | |
| Marking Speed | 0-7000mm/s | |
| Marking Depth | 0.01-5mm(OPTIONAL) | |
| Warranty | 2 years | |
| Life Time | 100000Hours | |
| Package | Plywood Case | |
| SERVICE | 24 Hours Online | |
| Repeat frequency | 20KHz-80KHz | |
| Gross Weight | 50KG | |
| Dimension | 780*460*570mm | |

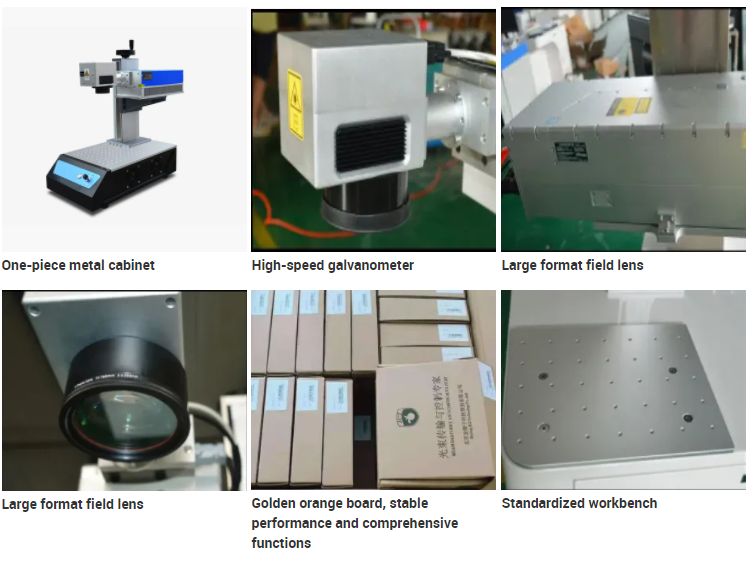

Machine Details
Our Advantages
1.The traditional code spraying logo is easy to fall off in the later stage.
2.The labeling logo is not only easy to fall off, but also attaches glue to the product, which affects the customer's experience and reduces the quality and pricing of the product.
3.Some plastic products use ordinary fiber laser marking machine to have a scorching effect, while the use of UV laser marking machine does not affect the product, and the appearance is high-grade.
4. The marking using UV laser marking machine of Hanteng are all permanent and difficult to remove and fall off. Now more and more stores and manufacturers have begun to use UV laser marking machines to make personalized customized products for customers and agents. For example, KTV places will give VIP customers a customized name on the glass for long-term independent use.
The UV laser marking machine can be applied to leather, wood, plastic, transparent glass, N95 and other textile materials, as well as colored paper, fine metals and other materials. Due to its high processing accuracy, it has been used more and more widely in the high-end electronics industry.

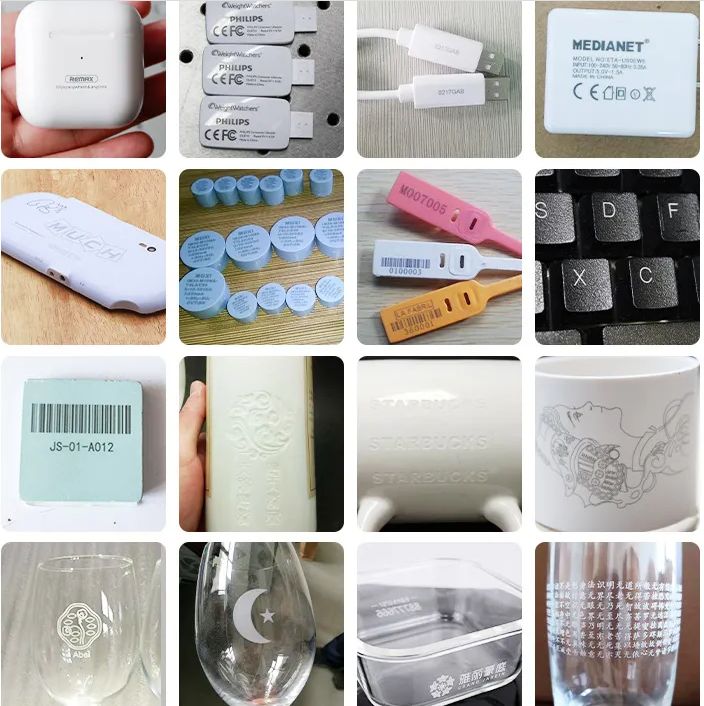

These are the samples that our customers mark on all kinds of glass, plastics, and other nonmetals
