Laser Welding Machine for aluminum

Short Description:

Application of handheld laser welding machine in the construction industry


Product Detail

Product Tags

TECHNICAL PARAMETER

Introduction

With the continuous development of technology, the application of handheld laser welding machines in the construction industry has become a trend. This new welding technology has brought revolutionary changes to the construction industry due to its high efficiency, precision, and flexibility. This article will provide a detailed introduction to the principles, advantages, and applications of handheld laser welding machines in the construction industry.

Introduction to Handheld Laser Welding Machine

The handheld laser welding machine is an efficient and flexible welding equipment that uses a laser beam as a heat source. Through a high-precision optical system, the laser beam is focused on the workpiece, forming a high-temperature focus, melting and connecting the workpiece together. Handheld laser welding machines have the advantages of simple operation, fast welding speed, and high weld quality, making them widely used in the construction industry.

TECHNICAL PARAMETER

LASER POWER 1000W 1500W 2000W
Melting depth (stainless steel, 1m/min) 2.68mm 3.59mm 4.57mm
Melting depth (carbon steel, 1m/min) 2.06mm 2.77mm 3.59mm
Melting depth (aluminum alloy, 1m/min) 2mm 3mm 4mm
Automatic wire feeding φ0.8-1.2 welding wire φ0.8-1.6 welding wire φ0.8-1.2 welding wire
Power consumption ≤3kw ≤4.5kw ≤6kw
Cooling method water cooling water cooling water cooling
Power demand 220v 220v or 380v 380v
Argon or nitrogen protection (customer's own) 20 L/min 20 L/min 20 L/min
Equipment size 0.6*1.1*1.1m 0.6*1.1*1.1m 0.6*1.1*1.1m
Equipment weight ≈150kg ≈170kg ≈185kg

Advantages of handheld laser welding machines

Efficiency: The handheld laser welding machine has extremely high welding speed, which is faster than traditional arc welding and greatly improves welding efficiency.

Energy conservation and environmental protection: Due to the concentration of laser welding energy and the small heat affected zone, there is no need to add solder, reducing energy consumption and environmental pollution.

Flexibility: The handheld laser welding machine is lightweight and flexible, allowing for quick replacement of welding joints to meet different welding needs.

High weld quality: The weld seam formed by laser welding is smooth, dense, high-strength, and has good aesthetics and durability.

Application of handheld laser welding machine in the construction industry

Steel structure welding: In the construction industry, steel structure is a common structural form. The handheld laser welding machine can quickly and accurately complete the welding of steel structures, improving construction efficiency.

Welding of steel bars: In construction projects, the connection of steel bars is a key link. The handheld laser welding machine can efficiently complete the docking and cross connection of steel bars, improving the quality of engineering.

Metal plate welding: For the splicing and repair of metal plates, handheld laser welding machines have extremely high accuracy and aesthetics.

Welding in special environments: Traditional welding methods are difficult to implement in some special environments, such as high altitude and narrow spaces. The handheld laser welding machine is easy to operate and has strong adaptability, and can complete welding tasks in these special environments.

Cultural Relics Restoration: For the restoration of cultural relics, handheld laser welding machines can achieve non-destructive restoration, maximizing the preservation of the original state of the cultural relics.

Bridge and building structure splicing: In the construction process of bridges and high-rise buildings, the splicing of structural components is a key link. The handheld laser welding machine can achieve precise and efficient splicing, improving construction speed and quality.

Decoration and decoration: In the field of decoration and decoration, handheld laser welding machines can be used for the production and repair of various metal decorations, such as metal ceilings, metal curtain walls, etc.

Pipeline welding: In pipeline construction, handheld laser welding machines can quickly complete pipeline connection and repair, improving construction efficiency and quality.

Fence welding: In the production of fences, guardrails and other projects, handheld laser welding machines can achieve efficient and beautiful welding effects.

Other applications: In addition to the above application fields, handheld laser welding machines can also be applied to the manufacturing and repair of various metal products, such as metal furniture, metal boxes, etc.

Conclusion

The emergence of handheld laser welding machines has brought many conveniences and innovations to the construction industry. It has become an important tool in the construction industry due to its efficient, precise, and flexible characteristics. With the continuous progress of technology and the continuous expansion of application fields, the application prospects of handheld laser welding machines in the construction industry will be even broader.

WELDING METHODS

Laser Welding Machine for alum8

Butt welding

Laser Welding Machine for alum9

T-Weld

Laser Welding Machine for alum10

Lap Welding

Laser Welding Machine for alum11

Fillet weld

Laser Welding Machine for alum12

NO Weld Scar

Laser Welding Machine for alum13

Weld appearance

Laser Welding Machine for alum16

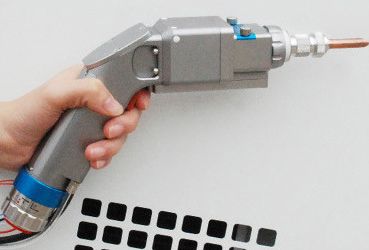

Hand-held automatic wire feed head

Laser Welding Machine for alum15

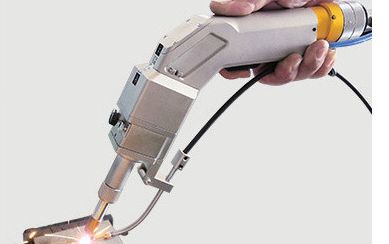

Hand-held automatic wire feed welding head

Laser Welding Machine for alum14

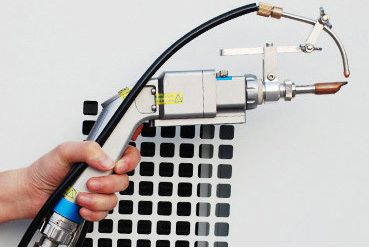

Hand swing welding head

Laser Welding Machine for alum17

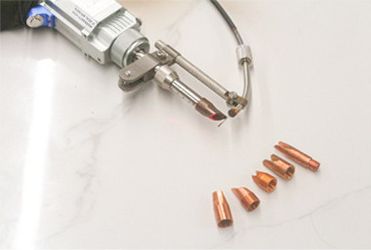

Welding Nozzle

Packing & Shipping

50w laser marking machine6
50w laser marking machine7

The machine would be packed in solid wooden crate for international shipping, suitable for sea, air and express transportation.
