Laser Rust Removal Machine for Iron
Handheld Laser Cleaning Machines Features
High efficiency,good effect
Automation.Stable cleaning efficiency.No chemical cleaning fluid required.
Control system
Simple clear and concise interface. Easy to operate. Multiple parameters setting available. Easy to achieve the control for laser source and lens.
Eco and environmental protection
Precise cleaning, with accurate location. protect the surface of brittle materials effectively clean up micron-level pollution particles.
| Contrast | Laser Cleaning | Chemical Cleaning | Mechanical Polishing | Dry Ice Cleaning | Ultrasonic Cleaning |
| Cleaning method | Laser, non-contact | Chemical cleaning agent, contact | Mechanical / sandpaper, contact | Dry ice, non-contact | Cleaning agent, contact |
| Workpiece injury | No damage | Damage | Damage | No Damage | No Damage |
| cleaning efficiency | High | Low | Low | Middle | Middle |
| Consumables | Only electricity needed | Chemical cleaning agent | Sandpaper, grinding wheel, oil, etc. | dry ice | Dedicated cleaning liquid |
| Cleaning Effect | Very excellent, clean clean | General, uneven | General, uneven | Excellent, uneven | Excellent, uneven |
| Precise cleaning | Precise controllable, high precision | Uncontrollable, accuracy difference | Uncontrollable, accurate | Uncontrollable, accurate | Can't specify scope cleaning |
| Safety / environmental protection | Non-Pollution | Chemical pollution environment | polluted environment | Non-Pollution | Non-Pollution |
| Manual operation | Simple operation, handheld or automation | Process process is complex, high requirements for operators, need pollution protection measures | It is very hard to consume manpower, need to do pollution protection measures | Simple operation, handheld or automation | Simple operation, but you need to add consumables |
| Cost | No consumables, low maintenance cost | The cost of consumables is extremely high | The cost of labor is low. | The cost of consumables is high. | The cost of consumables is medium |
Technical Data
| NO | Description | Parameter |
| 1 | Model | AKH-1000 / AKH-1500 / AKH-2000 |
| 2 | Laser Power | 1000W / 1500W / 2000W |
| 3 | Laser Type | JPT / Raycus / Reci |
| 4 | Central wavelength | 1064nm |
| 5 | Line length | 10M |
| 6 | Cleaning efficiency | 12 ㎡/h |
| 7 | Support language | English, Chinese, Japanese, Korean, Russian, Spanish |
| 8 | Cooling Type | Water cooling |
| 9 | Average Power (W), Max | 1000W |
| 10 | Average Power (W), Output Range (If adjustable) | 0-1000 |
| 11 | Pulse-Frequency (KHz),Range | 20-200 |
| 12 | Scanning Width (mm) | 10-80 |
| 13 | Expected Focal Distance(mm) | 160mm |
| 14 | Input Power | 380V/220V, 50/60H |
| 15 | Dimensions | 1240mm×620mm×1060mm |
| 16 | Weight | 240KG |
Product Detail Drawing

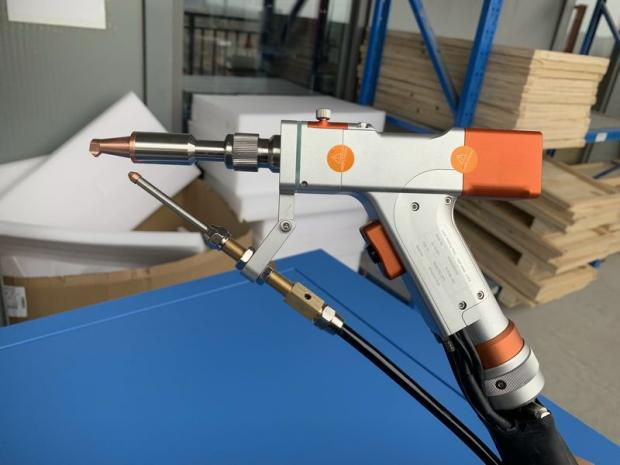

HANWEI Laser Cleaning Head
*Using a handheld cleaning gun design,it can flexibly respond to various objects and angles.
* Easy to operate and portable move.

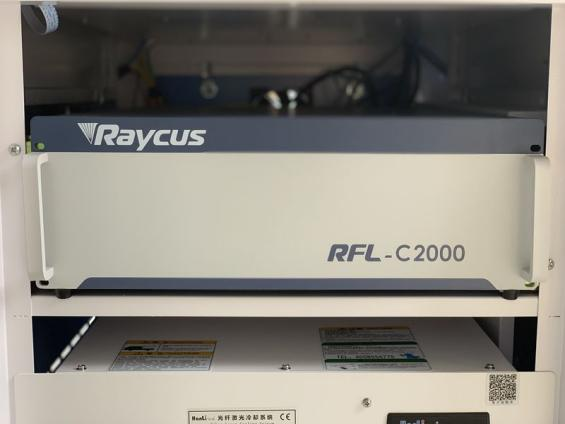

Raycus Laser Generator 1000W
*Raycus has an efficient and professional R&D and production team,which is the top quality in China.
*The lasers have higher electro-optical conversion effiency,higher and more stable optical quality.

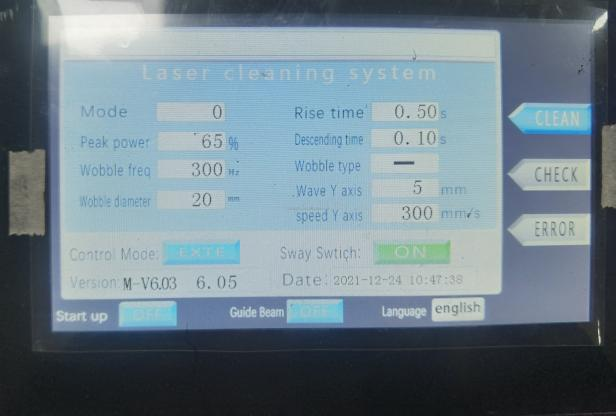

Intelligent control system
Intelligent control system, touch screen, easy to set parameters. Has a variety of laser cleaning mode to meet different needs, get better welding effects

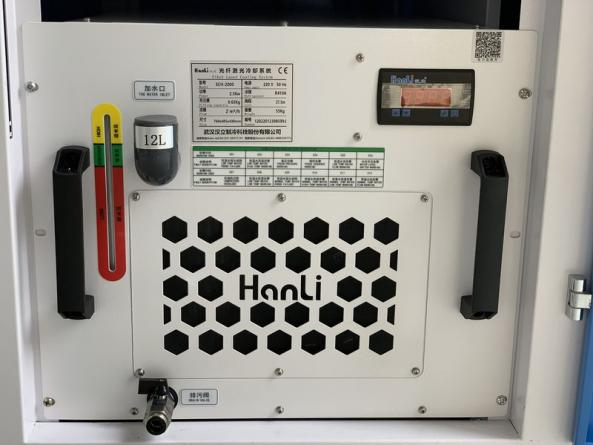

HANLI water Chiller
*Specially developed for fiber laser equipment,excellent cooling effect.
*Stable and reliable performance,low failure rate,energy efficient.

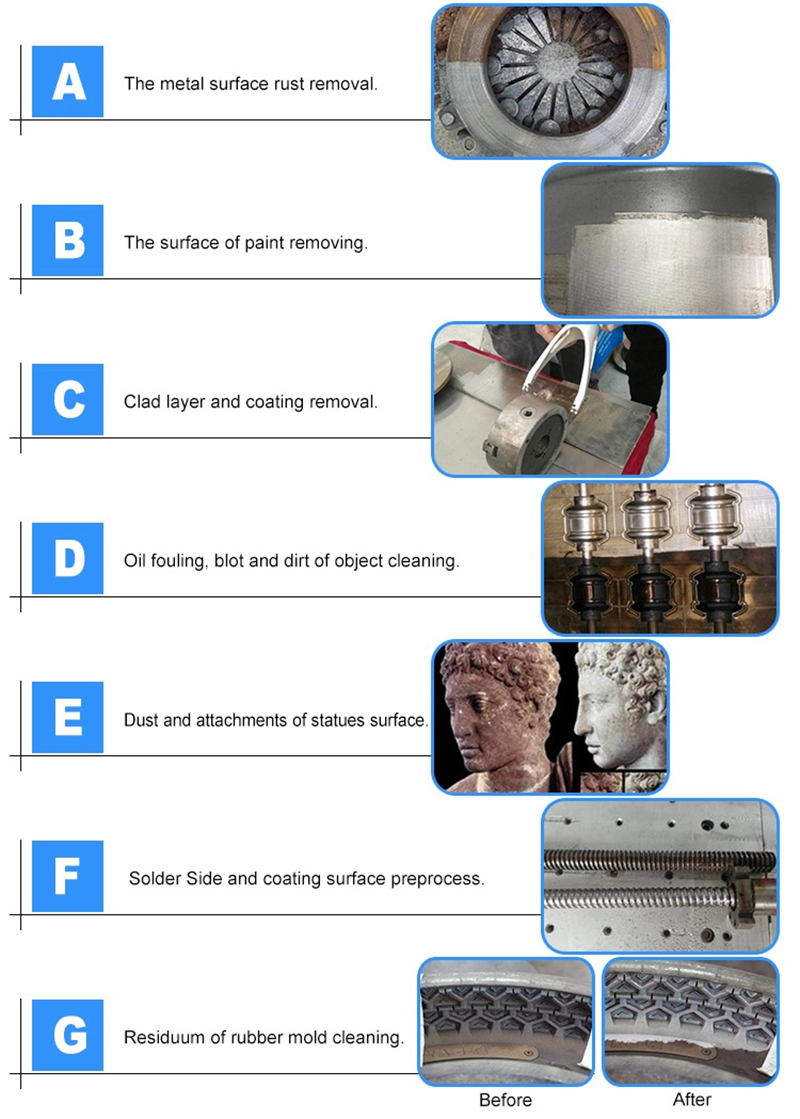

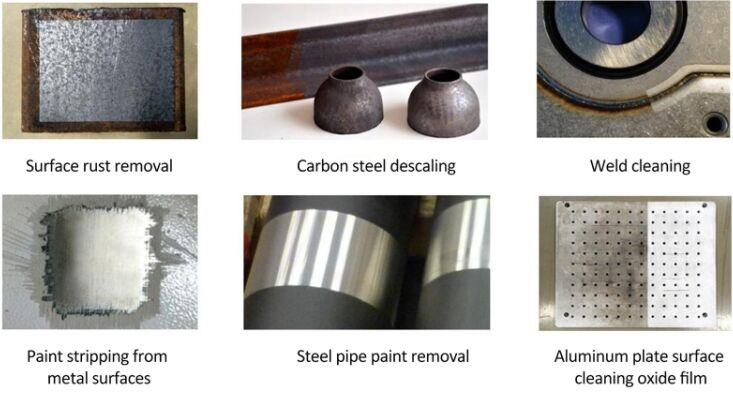

Industry Applications
Remove the rust, resin, oil contamination, stains, dirt, coating, plating and paint on the surface of different shape metal objects, and the stone caving surface attachments and rubber mold surface residue.
Continuous Fiber Laser Rust Removal more suitable for some large steel structures, pipes, etc, due to their large size, fast heat dissipation, and low requirements for substrate damage, this continuous laser cleaning machine is recommended.
Note:
Pulsed laser cleaning machine can better control heat input to prevent excessive substrate temperature or micro-melting. Therefore, it is more suitable for application scenarios that require strict control of the substrate and damage to the substrate, such as abrasive cleaning, paint surface and coating cleaning, etc.
