Laser Marking Machine for Stainless
Machine Features：
What Can Fiber Laser Engraving Machine do?
One fiber laser marking machine with 4 functions: Fast marking on materials surface, deep engraving metal,cutting jewelry names, 3D relief engraving metal. Suits for engraving logo, text, time, serial, part number, QR code, barcode, 2D code, bitmap, pictures and images on almost all metal and part of nonmetal mateirals. Appicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs, pens, auto parts, knives, metal tools and machinery parts etc.Flexible to work with electric xy moving table to get large format engraving area, work with rotary fixture to mark cylinder objects.
Advantages of Raycus/JPT Mopa Fiber Laser Marking Engraving Machine
The Mopa fiber laser can maintain the peak power at the same level for different pulse repetition frequency. Compare with conventional solid state lasers,MOPA fiber lasers with higher slope efficiency is more compact and easy to carry,enables higher beam quality of the laser output. Engraving more finess, pure black color marking on stainless steel and titanium. Marking wider range of plastic materials too.
Main Parts of Fiber Laser Marking Engraving Machine
Laser Source: Raycus / JPT / IPG / MAX brand.
Software: EZCAD2 or EZCAD3.0
Laser Power: 30w 50w 60w 80w 100w 120W
Marking Area: 70*70mm, 110*110mm, 150*150mm, 175*175mm,200*200mm, 300*300mm.
Galvo Head: HRC Laser HRC8810 / Sino Galvo SG 2206 / Sino Galvo SG7220
Column Stand: 50cm / 68cm / 80cm / 100cm etc.
Rotary Fixture Available: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.
More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor table / Purifier / Electric XY table.
| NO | ITEM | PARAMETER |
| 1 | Laser power | 20W 30W 50W 100W |
| 2 | Laser wavelength | 1064nm |
| 3 | Beam quality | M2<2 |
| 4 | Control software | Ezcad (provided) |
| 5 | Marking depth | ≤0.3mm |
| 6 | Cutting depth | ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut) |
| 7 | Marking speed | ≤7000mm/s |
| 8 | Minimum line width | 0.01mm |
| 9 | Minimum character | 0.5mm |
| 10 | Marking Size | 110 * 110mm ( 75mm 200mm 300mm optional ) |
| 11 | Electric power | <500W |
| 12 | Working voltage | 110/220V ± 10%, 50/60HZ |
| 13 | Cooling way | Air cooling |
| 14 | Ambient operating temperature | 15 ° C - 35 ° C |
| 15 | Graphic file format | PLT, DXF, AI, BMP, JPG |
| 16 | Machine weight | 39 |
| 17 | Machine size | 56L * 55W * 72H (cm) |
| 18 | Packing | Plywood box |

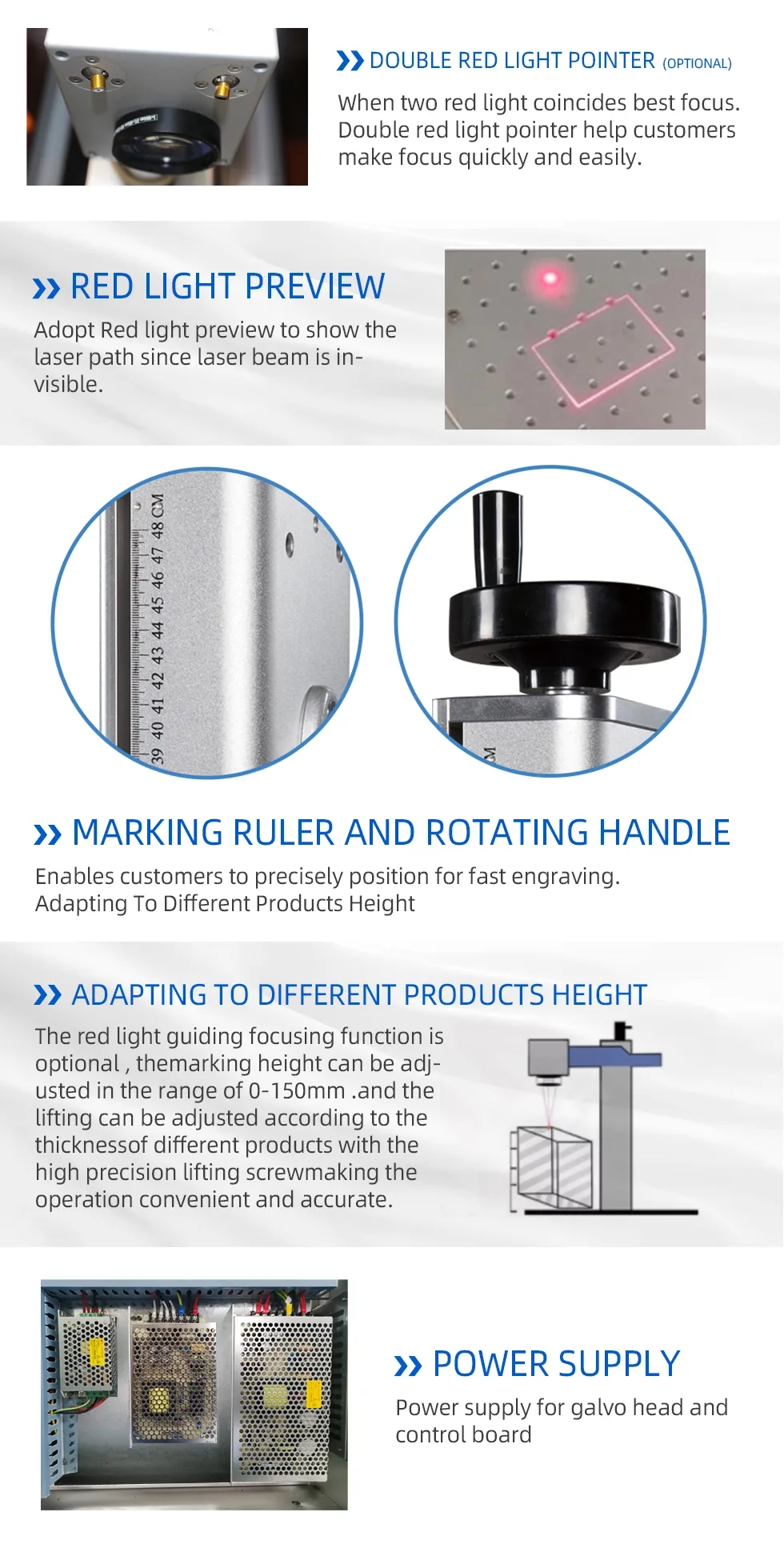

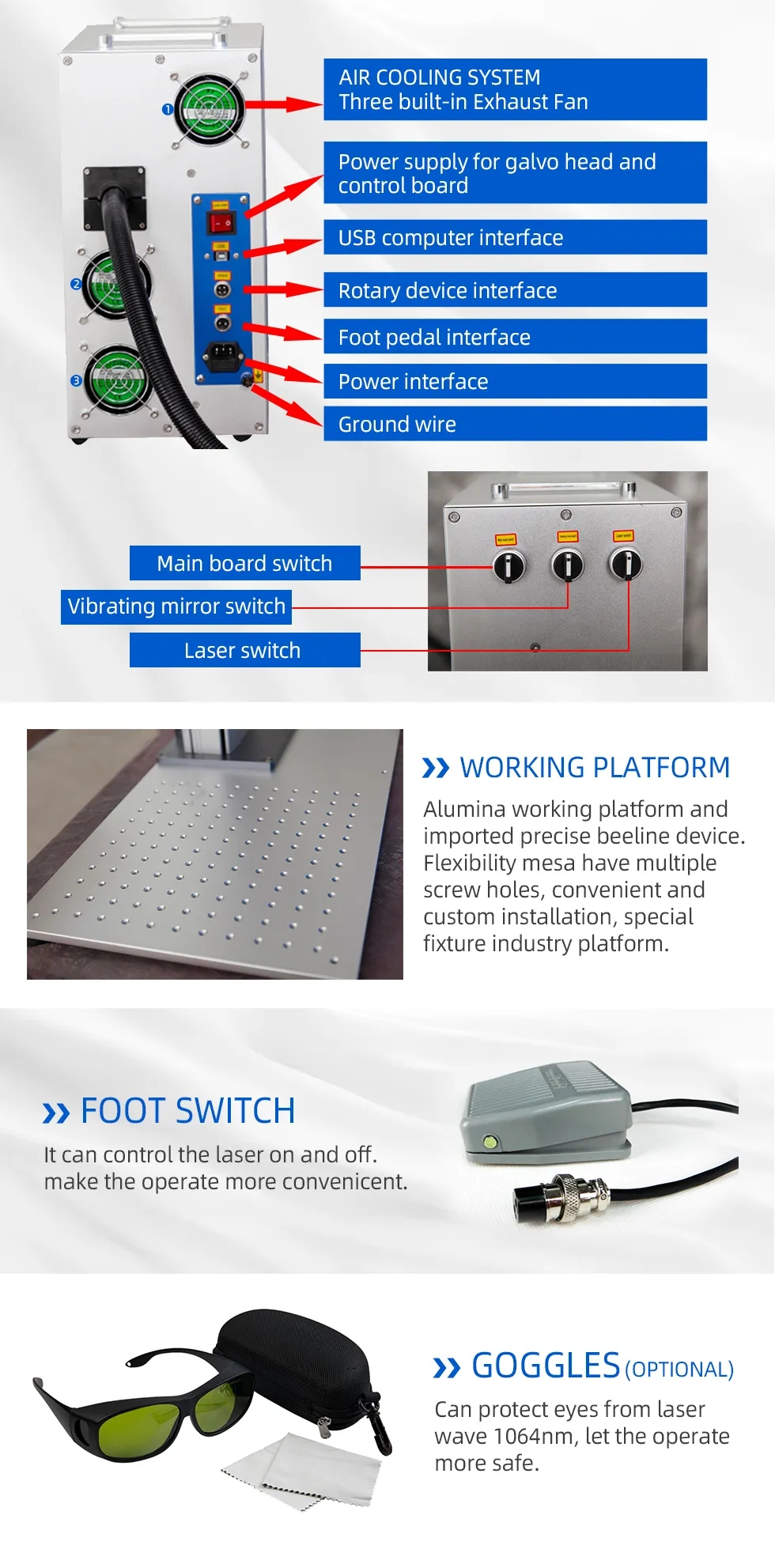

Machine Details

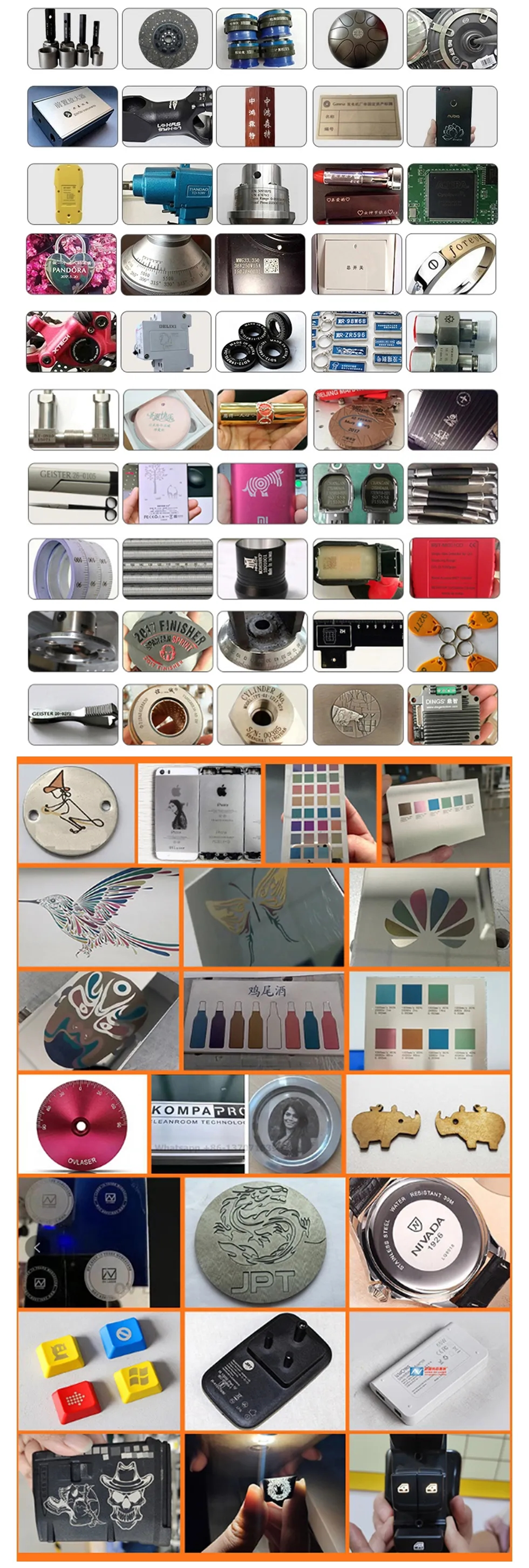

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
Packing & Shipping
The machine would be packed in solid wooden crate for international shipping, suitable for sea, air and express transportation.
