Laser Marking Machine for Metal
Description
| Model | HRC- 20A/30A/50A/80A/100A |
| Work Area(MM) | 110X110/160*160(Optional) |
| Laser Power | 20W/30W/50W/80W/100W |
| Laser Repetition Frequency1 | KHz-400KHz |
| Wavelength | 1064nm |
| Beam Quality | <2M2 |
| Min Line Width | 0.01MM |
| Min Character | 0.15mm |
| Marking Speed | <10000mm/s |
| Marking Depth | <0.5mm |
| Repeat Precision | +_0.002MM |
| Power Supply | 220V(±10%)/50Hz/4A |
| Gross Power | <500W |
| Laser Module Life | 100000Hours |
| Cooling Style | Air Cooling |
| System Composition | Control System, HP Laptop, Separated Type |
| Working Environment | Clean and Dust Free |
| Operating Temperature | 10℃-35℃ |
| Humidity | 5% to75% (Free of Condensed Water) |
| Power | AC220V, 50HZ, 10Amp Stable Voltage |
| Warranty | 12 Months |
Application Materials
Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.
Advantages
1. Full-direction wheel & Adjustable foot convenient to move.
2. Long lifespan of fiber laser source: 100,000 hours.
3. High Quality scanning galvanometer, with good seal, small volume, compact.
4. JCZ controller, USB interface, swift and stable transmission
5. High Precision:UP to 0.0012mm, bring you the fantastic and statified marking effect.
6. Superior laser beam: the definition is 1 micron, 10 times as that of traditional products.
7. No Consumables: One Fiber Marker can work for more than 10 years without any consumables.
8. Fast Speed: Marking speed 10000mm/s, is 3 to 5 times above that of traditional products.
9. The fiber laser beam no need to adjust the laser optical path.
10. Low consumption:<400W, is 1/25~1/10 times as that of Diode and YAG, more economized and environmental.
Machine Details
Galvo Head
1. Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology,digital signal, high precision and speed.
2. Flat field images with micron-order diffraction-limited spot sizes are available.
Field Lens
We use famous brand to provides precision laser, standard 110x110mm marking area, Optional 175x175mm, 200x200mm, 300x300mm etc.
Laser Source
We use Raycus Laser Source, A widely selectivity of operating wave-lengths, ultra-low amplitude noise, high stability and ultra-long lifetime.
JCZ CONTROL BOARD
1. Powerful editing function.
2. Friendly interface
3. Easy to use
4. Support microsoft windows XP,VISTA,Win7,Win10 system.
5. Support ai,dxf,dst,plt.bmp,jpg,gif,tga,png,tif and other file formats.
Double red light pointer
When two red light coincides best focus, Double red light pointer help customers make focus quickly and easily.
Fixture
1. Easy to put kinds of materials on the worktable.
2. There are multiple flexible screw holes on the worktable convenient for customized installation.

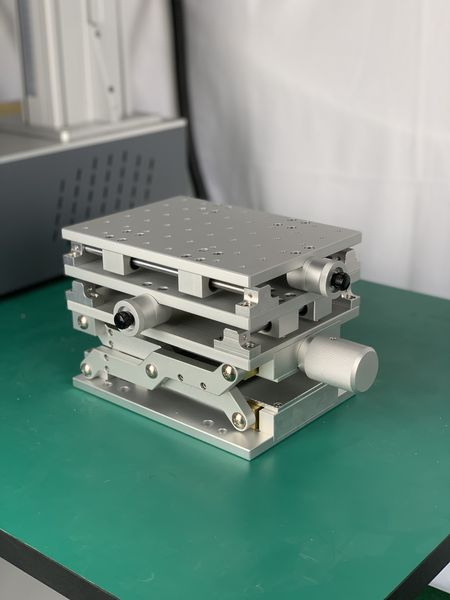

2D Table
Standard table size is 220x300mm. It can move from left to right and from front to back. It can also fix material.
