Jewelry Laser Welder (HRC-200A/300A)

Short Description:

This welder is specially developed for laser welding of jewelry used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of the workpiece, and the surface heat diffuses to the interior through thermal conduction and melts the workpiece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.


Product Detail

Product Tags

TECHNICAL PARAMETER

Features and Advantages

 1. It can realize spot welding, butt welding, seam welding and sealing welding.

   The advantage is high position accuracy, easy to realize robotization

 2. Large working space, convenient for placing various tools and cleaning welding debris

 3. Jewelry laser welding machine adopts YAG technology, so xenon brand and crystal ,It is the core part of the whole laser welding machine

 4. It can be widely used in cabinets, kitchens, stairs, elevators, frames, ovens, stainless steel, steel door and window railings, distribution boxes, stainless steel homes, complex irregular welding, etc.

High Quality Lens Laser Crystal, Long Life, High Durability, Stable Laser Power

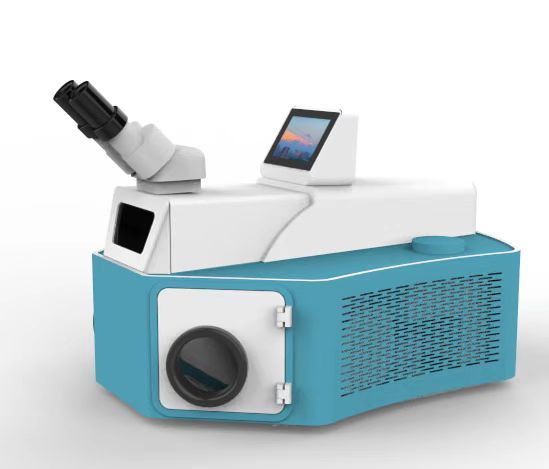

Jewelry Laser Welder (HRC-200A2

Machine scope

Our machines are widely used in the jewelry industry, hardware industry, tool industry,  instrument industry, automobile industry, energy industry, building materials industry,  model and machinery manufacturing, electrical and electronic industries.

Structural Analysis

HRC LASER focuses on the research and development, production and sales of laser equipment, the use of high-tech and high-quality laser accessories, so that each operation of the laser welding machine more scientific and more precise cooperation, so that the stability of laser equipment, improve the durability beyond the conventional equipment.

Jewelry Laser Welder (HRC-200A4

High density optical lens

Jewelry Laser Welder (HRC-200A5

Focusing mirror with coating protection

Jewelry Laser Welder (HRC-200A6

German Infineon module

Jewelry Laser Welder (HRC-200A7

Editable welding system

Jewelry Laser Welder (HRC-200A8

German high-density laser lamp

Jewelry Laser Welder (HRC-200A9

Gold-plated laser reflection chamber

Sample Photo

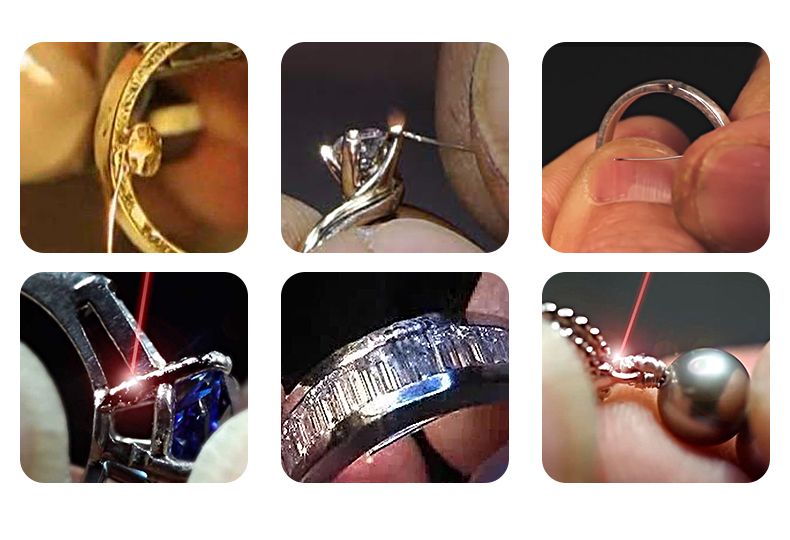

Jewelry Laser Welder (HRC-200A10

Jewelry Repair

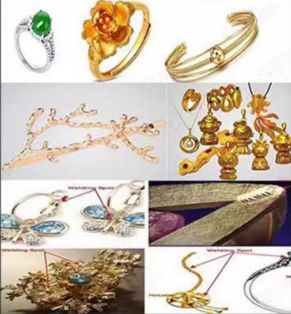

Jewelry Laser Welder (HRC-200A11

Pure gold silk

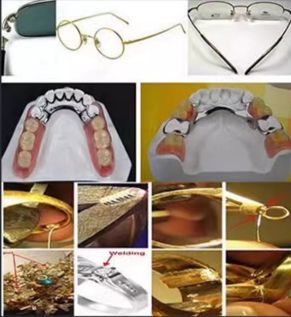

Jewelry Laser Welder (HRC-200A12

Denture Watch

Warranty and after-sales service

1.This machine has a 24-months warranty. You can see the warranty card, service card, operation video, and user manual on this machine.

   2.During the warranty period, if any part is damaged, we will provide you with new parts for free, and the freight will be borne by us (you will never be required to return old parts, and some manufacturers will require customers to return damaged parts)

   3.Even if your machine is out of warranty period, if you encounter any problems, you can call our service center or contact your sales staff. We will help you solve the problem within 12 hours. We have a team of after-sales engineers in English, Japanese, and Russian, and we can provide support services that small factories cannot provide.

TECHNICAL PARAMETER

Model HRC-200A HRC-300A
Laser light source and wave length Nd:YAD 1064nm
Average power 200w 300w
Peak power 4.5KW 6KW
Energy 260J 300J
Pulse Time 0.1÷20msv
Pulse Energy 0.5÷30Hz
Spot diameter 0.2÷2.0mm
Water quality requirements Distilled drinking water/industrial distilled water
The waveform program Presets six welding forms
Data Store 30 sets of data
Internal control operating lever
External control 7 inch color touch screen
Input Power 230VAC,50/60Hz
Current 10A

*Solder can be seen clearly with the naked eye and with glasses

*Can improve vision, clear and accurate eyes for a long time without fatigue

*High power 8mm laser crystal rod

*High power gold reflective chamber

*Multi-function color touch screen

*1064nm wavelength eye protection viewing window

*Internal rocker parameters

* LED light

*Low weight and size low noise

*Spacious studio

*30 groups of programs, can realize the data memory storage integrated data monitoring system,

can record the internal control rod welding room parameter adjustment

Powerful cooling system with integrated water and air cooling dual functions 7 "full touch control display

Italian high efficiency discharge capacitor, easily handle the HD 10x magnifying glass made by the company

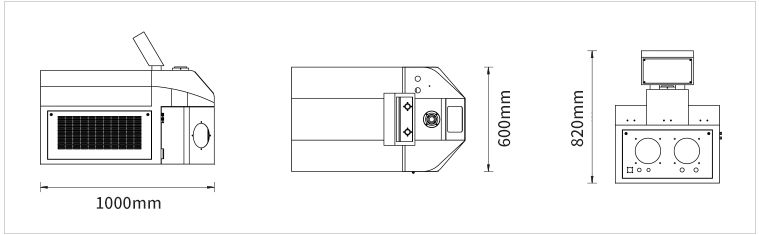

Jewelry Laser Welder (HRC-200A3

Packing & Shipping

50w laser marking machine6
50w laser marking machine7

The machine would be packed in solid wooden crate for international shipping, suitable for sea, air and express transportation.
