Handheld Laser Welding Machine
Description
The Mini Type handheld Fiber laser welding machine combines the fundamental qualities of an ultra-portable device with uncompromising performance.
FTW-SL-1000/1500/2000 Mini handheld laser welding machine adopts the latest generation of fiber laser and is equipped with OSPRI handheld laser welding head, which fills the gap of handheld welding in the laser equipment industry. With the advantages of fast welding speed and no consumables, it can perfectly replace traditional argon Arc(TIG) welding, electric welding and other processes when welding thin stainless steel plates, iron plates, galvanized plates and other metal materials. Hand-held laser.
welding machine can be widely used in complex and irregular welding processes in cabinet kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries.
Technical Parameter
| Model | FTW-SL-1000 | FTW-SL-1500 | FTW-SL-2000 |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Source | Raycus/Max/IPG/ SUNLITE | Raycus/Max/IPG/ SUNLITE | Raycus/Max/IPG/ SUNLITE |
| Laser Head | OSPRI | OSPRI | OSPRI |
| Fiber Wire Length | 5/10 Meters | 5/10 Meters | 5/10 Meters |
| Laser Wavelength | 1070nm | 1070nm | 1070nm |
| Operate Mode | Continuation/Modulate | Continuation/Modulate | Continuation/Modulate |
| Water Chiller | Hanli/S&A | Hanli/S&A | Hanli/S&A |
| Spot Adjusting Range | 0.1-3mm | 0.1-3mm | 0.1-3mm |
| Repeating Precision | ±0.01mm | ±0.01mm | ±0.01mm |
| Cabinet Size | 744*941*1030mm | 744*941*1030mm | 750*1260*1110mm |
| Machine Weight | About 200KG | About 200KG | About 220KG |
| Voltage | 110V/220V/380V | 110V/220V/380V | 110V/220V/380V |
Machine Tips
1. About Fiber Cable Length
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required.
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online.
Machine Application
Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. Mechanical and electrical products, automobiles and other industries.
Machine Details

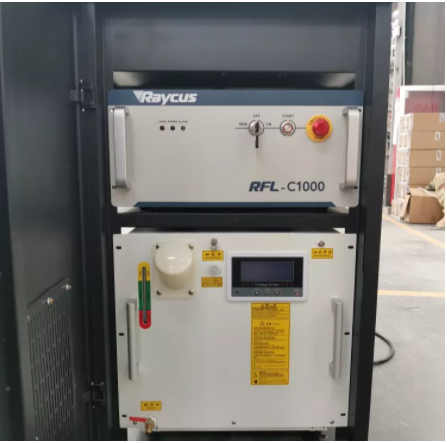

RAYCUS MAX SUNLITE Fiber Laser Source Optional
Compared with similar products, the RAYCUS MAX SUNLITE Fiber laser Source has a higher photoelectric perfor-mance conversion ability, a more stablebeam, and a stronger anti-reflection ability.
Optional laser power range from 1000 watts to 2000 watts. We have an efficient and professional R&D and production team, which is the top quality in China. The lasers have higher electro-optical conversion.
OSPRI (QILIN) Fiber Laser Welding Head
1. Swing welding head
The process that traditional magnetic head cannot complete, the swing welding head only needs to use 70% of the power, which can save the cost of the laser; In addition, the swing welding method is adopted, the width of the welding joint is adjustable, and the welding fault tolerance is strong, which makes up for the small shortcomings of the laser welding joint. The tolerance range and welding width of the processed parts are enlarged, and a good welding forming effect is obtained.
2. 360 degree micro welding
After the laser beam is focused, the point can be accurately positioned and used for group welding of small and micro workpieces to achieve mass production.

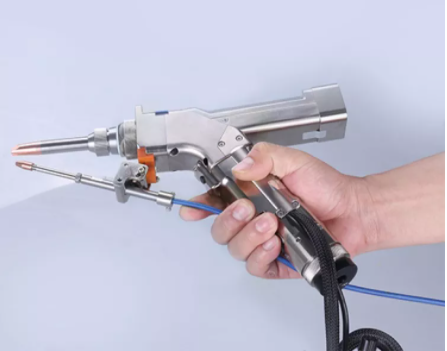

3. Handheld laser welding head Nozzles
When we have a fiber handheld laser welder and replace the welding nozzle with a cutting nozzle, we can call it a handheld fiber laser welding and cutting machine. Isn't it a great name!
It can take the optical fiber from the fiber laser and gather it to a tiny point to produce a high intensity laser for cutting purpose. However, please note that it is not able to cut too thick material.
Top Quality of Ospri Wobble Welding Head
1. The wobble welding joint independently developed adopts the swing welding mode.
2. The light spot width can be adjusted.
3. The welding fault tolerance is strong, which makes up for the disadvantage of small laser welding spot, expands the tolerance range and weld width of processed parts, and obtains better weld forming.

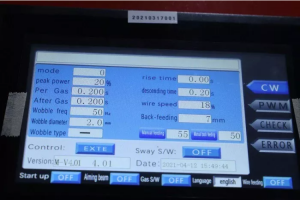

OSPRI Control System
The OSPRI control system is special designed to compect with it's OSPRI laser welding head. It comes with a few kinds of mode, CW model, PWM model Arc model.
The control screen directly digitally sets the parameters of the wire feeder.
The system monitors the operating status in real time, monitors and collects the operating status of the laser, chiller, and control board.
Support Chinese, English, Korean, Japanese, Russian, French, Spanish, Israeli language systems.

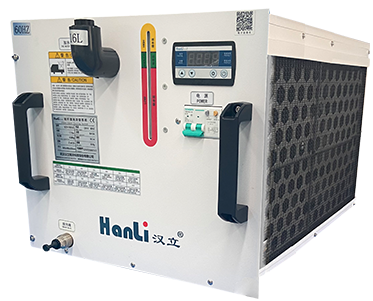

HANLI Water Chiller FOR LASER WELDER (OPTIONAL)
Hanli Water Chiller Specially developed for fiber laser equipment, excellent cooling effect. Stable and reliable performance, low failure rate, energy efficient.
Automatic Wire Feeder
The dual-drive wire feeding structure makes the wire feeding smoother and stronger without wire jamming; Closed chassis design, with liftable handle and universal wheel; Wire feeding regulator, LED screen dis-plays real-time wire feeding speed; High-precision speed control knob, and good wire feeding speed controllability.
1000W and 1500W support 0.8mm 1.0mm 1.2mm wire, 2000W support 0.8mm to 1.6mm.
Wire send and back speed adjust through touch panel.
If two weld metal gap more than 0.2mm that need filler wire.
Product Advantage

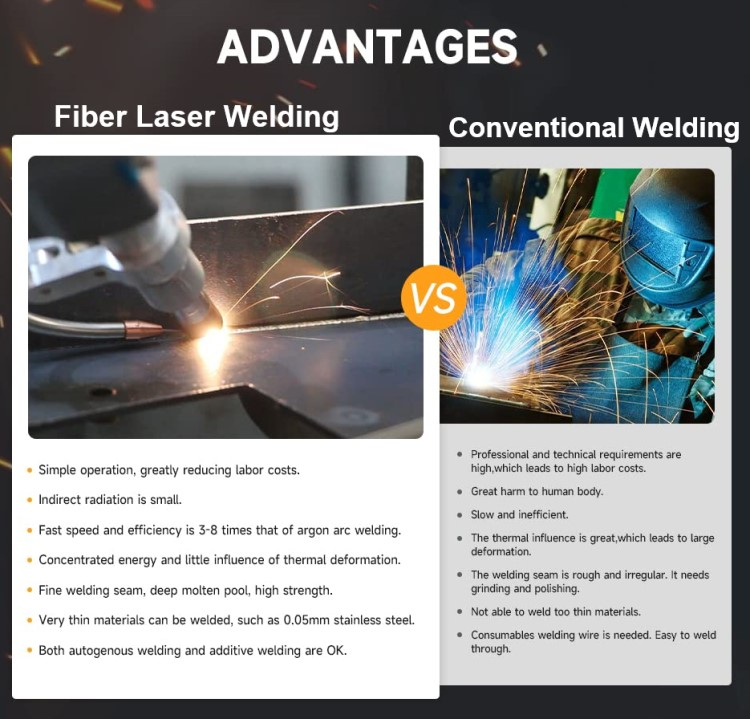

FIBER LASER WELDING Vs. Conventional TIG Welding
FIBER LASER WELDING

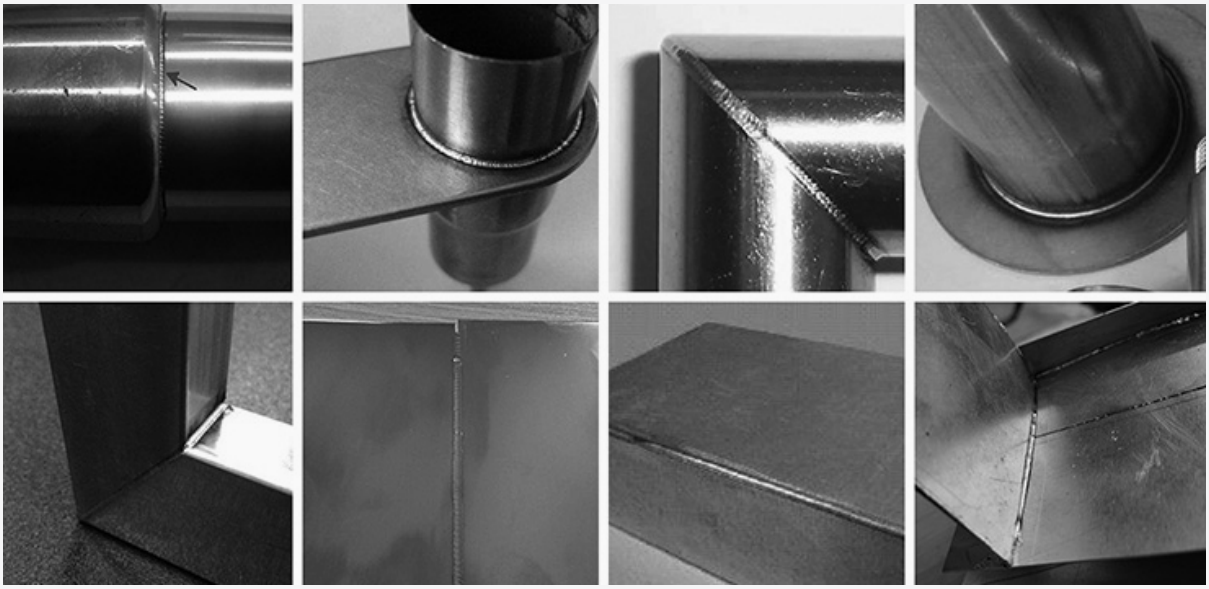

Simple operation, greatly reducing labor costs.Indirect radiation is small. Fast speed and efficiency is 3-8 times that of argon arc welding.Concentrated energy and little influence of thermal deformation.Fine welding seam, deep molten pool, high strength. Very thin materials can be welded, such as 0.05mm stainless steel.Both autogenous welding and additive welding are OK.
Conventional TIG Welding
Professional and technical requirements are high,which leads to high labor costs. Great harm to human body. Slow and inefficient. The thermal influence is great,which leads to large deformation. The welding seam is rough and irregular. It needs grinding and polishing. Not able to weld too thin materials. Consumables welding wire is needed. Easy to weld through.
Welding Material Parameter for your reference, different materials, different welding parameters, limited by the section, directly display a part.
If You want to know more about the parameter, please contact us directly, 24 hours online.
