Co2 Laser Marking Machine
Description
Co2 laser marking engraving machine can engrave serial number,picture,logo,random number,bar code,2d barcode and various arbitrary patterns and text on flat plate and also cylinders.
The main processing object is non-metal,widely used in craft gifts,furniture,leather clothing,advertising signs,model making food packaging,electronic components,fixtures,glasses,buttons,label paper,ceramics,bamboo products,product identification,serial number,pharmaceutical packaging,printing plate making,shell nameplate,etc
| Model | HRC-FP 30/60/80/100 |
| Work Area(MM) | 110X110/160*160(Optional) |
| Laser Power | 30W/60W/80W/100W |
| Laser Repetition Frequency1 | KHz-400KHz |
| Wavelength | 1064nm |
| Beam Quality | <2M2 |
| Min Line Width | 0.01MM |
| Min Character | 0.15mm |
| Marking Speed | <10000mm/s |
| Marking Depth | <0.5mm |
| Repeat Precision | +_0.002MM |
| Power Supply | 220V(±10%)/50Hz/4A |
| Gross Power | <500W |
| Laser Module Life | 100000Hours |
| Cooling Style | Air Cooling |
| System Composition | Control System, HP Laptop, Separated Type |
| Working Environment | Clean and Dust Free |
| Operating Temperature | 10℃-35℃ |
| Humidity | 5% to75% (Free of Condensed Water) |
| Power | AC220V, 50HZ, 10Amp Stable Voltage |
| Warranty | 12 Months |
Applicable Material:Carving matetials mainly include bamboo and wood products,paper,cloth leather,plexiglass,epoxy resin,acrylic,polyester resin and other non-metallic materials.
Features and Advantages
Galvo Head
Famous brand Sino-galvo,high speed galvanometer scan adopting SCANLAB technology,digital signal,high precision and speed.
Machine Details

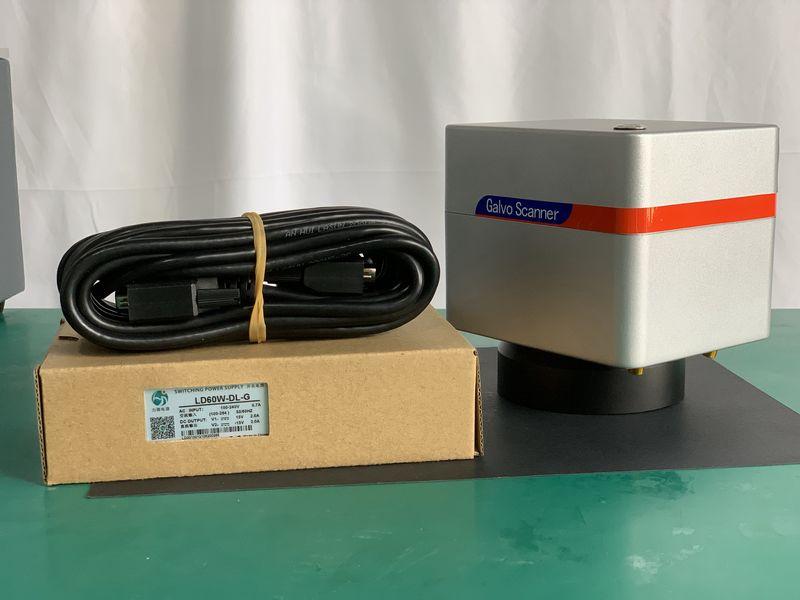

Galvo Head
Famous brand Sino-galvo,high speed galvanometer scan adopting SCANLAB technology,digital signal,high precision and speed.

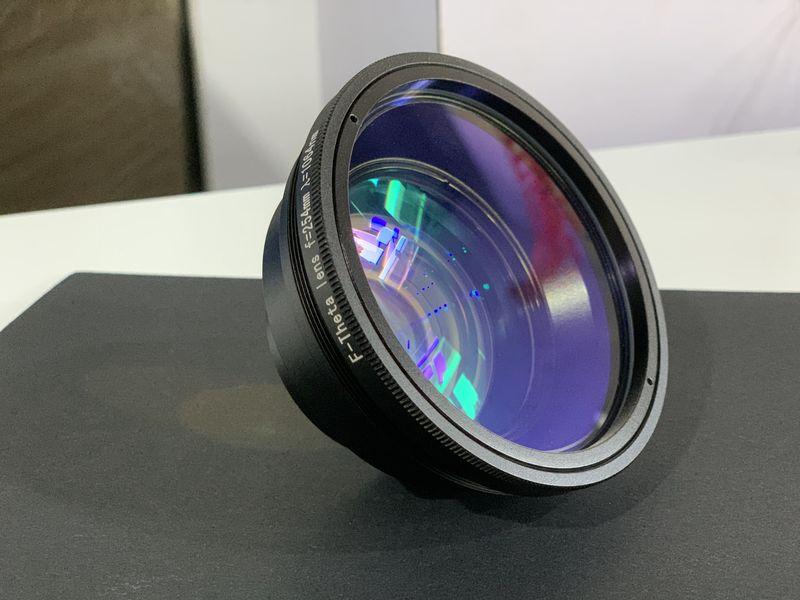

Field Lens
We use famous brand to provides precision laser,standard 110x110mm marking area,Optional 175x175mm,200x200mm,300x300mm etc.

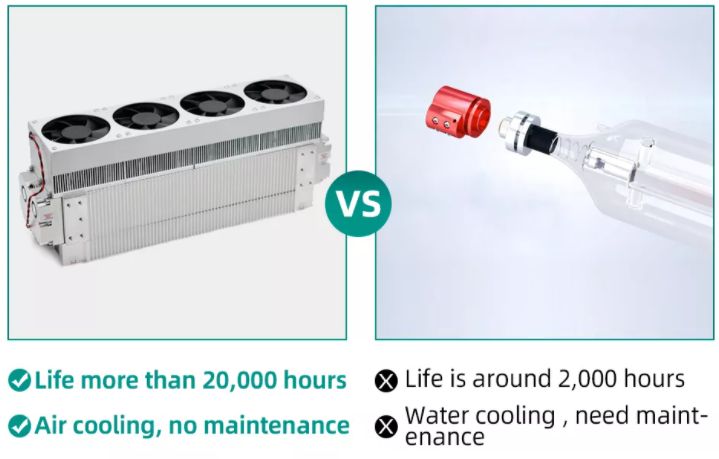

Excellent Davi Laser source.no need maintenance,long life more than 20,000 hours we can also configure the other brand source like SYNRAD Coherent.

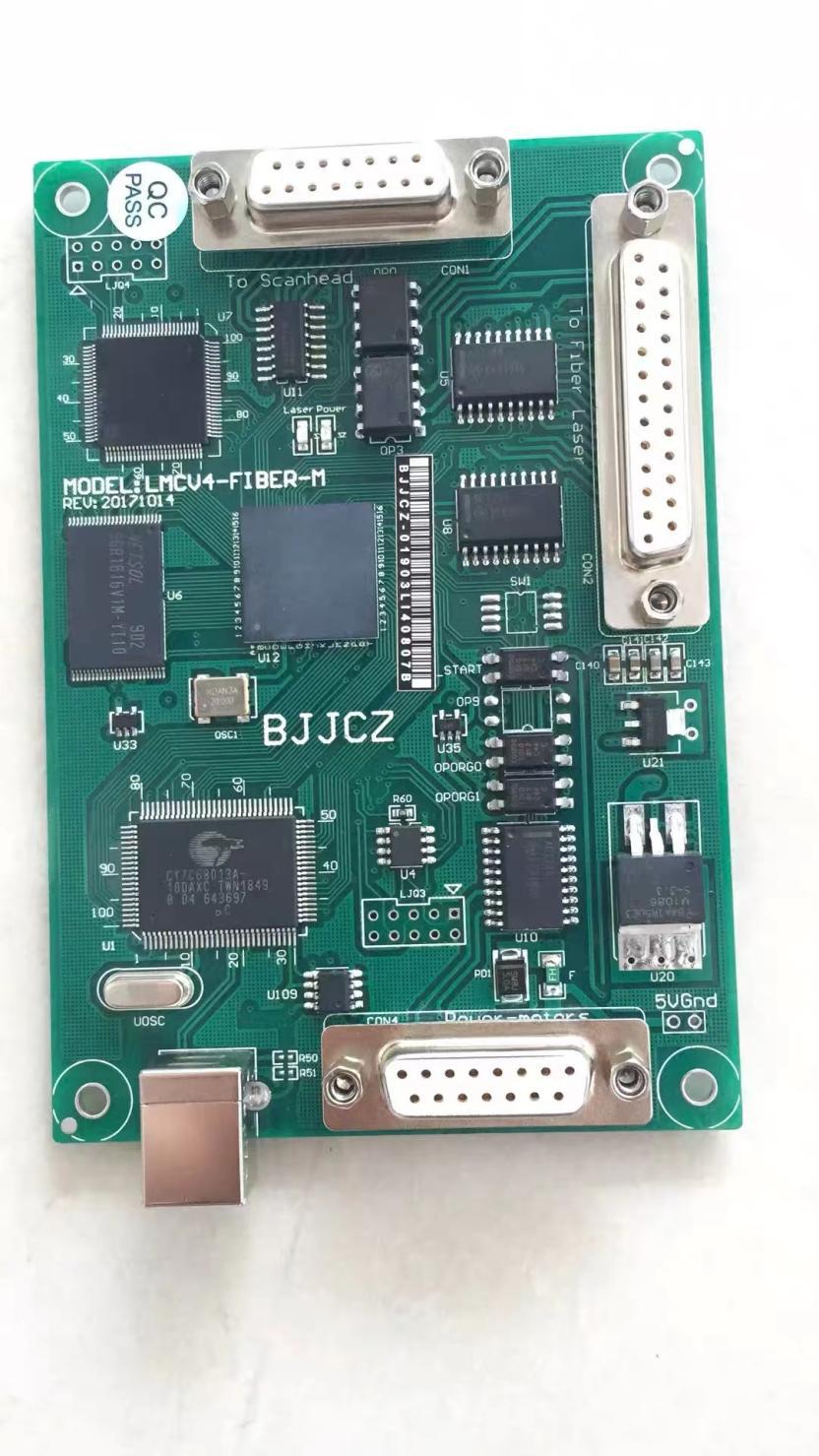

JCZ CONTROL BOARD
1,Powerful editing function.
2,friendly interface
3,Easy to use
4,Support microsoft windows XP,VISTA,Win7,Win10 system.
5,Support ai,dxf,dst,plt.bmp,jpg,gif,tga,png,tif and other file formats.

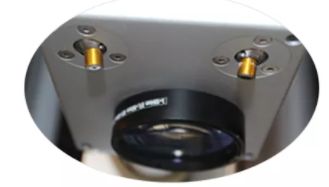

Double red light pointer
When two red light coincides best focus,Double red light pointer help customers make focus quickly and easily.

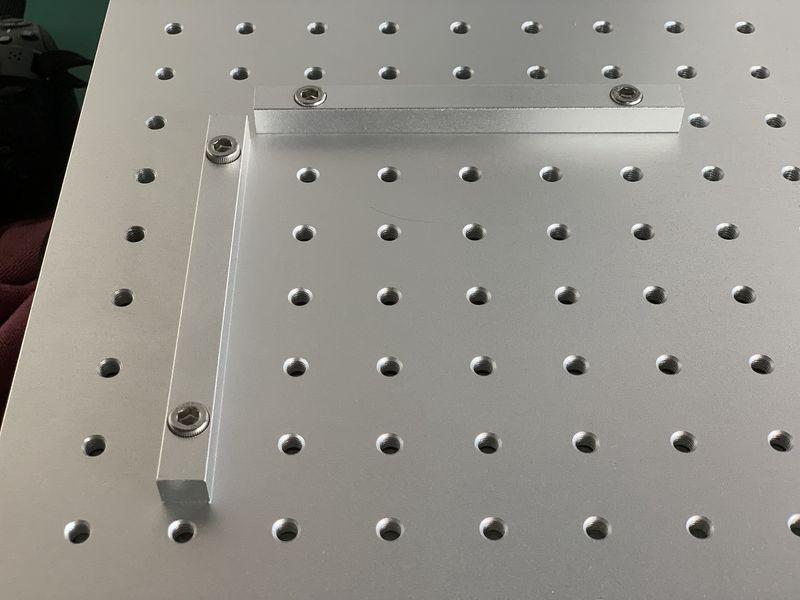

Fixture
1,easy to put kinds of materials on the worktable.
2,There are multiple flexible screw holes on the worktable convenient for customized installation.
