Factory Price Of 20w Laser Marking Machine
Description
| Model | HRC- 20A/30A/50A/80A/100A |
| Work Area(MM) | 110X110/160*160(Optional) |
| Laser Power | 20W/30W/50W/80W/100W |
| Laser Repetition Frequency1 | KHz-400KHz |
| Wavelength | 1064nm |
| Beam Quality | <2M2 |
| Min Line Width | 0.01MM |
| Min Character | 0.15mm |
| Marking Speed | <10000mm/s |
| Marking Depth | <0.5mm |
| Repeat Precision | +_0.002MM |
| Power Supply | 220V(±10%)/50Hz/4A |
| Gross Power | <500W |
| Laser Module Life | 100000Hours |
| Cooling Style | Air Cooling |
| System Composition | Control System, HP Laptop, Separated Type |
| Working Environment | Clean and Dust Free |
| Operating Temperature | 10℃-35℃ |
| Humidity | 5% to75% (Free of Condensed Water) |
| Power | AC220V, 50HZ, 10Amp Stable Voltage |
| Warranty | 12 Months |
Machine Features
1. Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
2. High Precision: Re-position precision is 0.002mm.
3. High Speed: Imported scanning system makes the scanning speed is up to 7000m/s .
4. Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as Au toCAD, CorelDRAW and Photoshop. 5.High Reliability: MTBF>100,000 hours.
5. Energy Saving: The efficiency of optic-electrical converting is up to 30%.
6. Low Running Cost: No wearing part. Free maintaining.
Machine Details
Galvo Head
Famous brand Sino-galvo,high speed galvanometer scan adopting SCANLAB technology,digital signal,high precision and speed.
Field Lens
We use famous brand to provides precision laser,standard 110x110mm marking area,Optional 175x175mm,200x200mm,300x300mm etc.

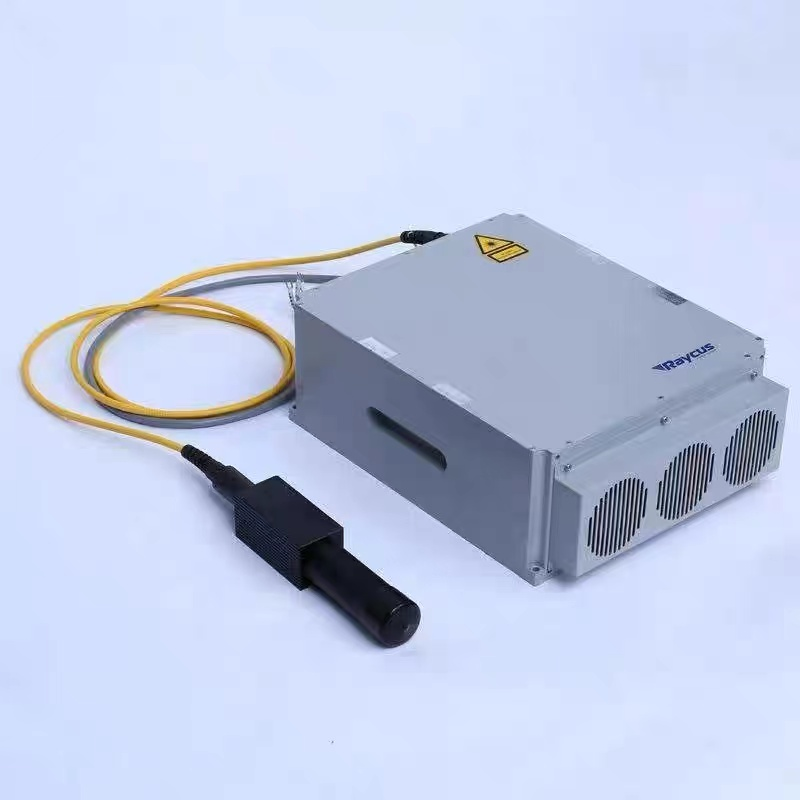

Laser Source
We use Raycus Laser Source,A widely selectivity of operating wave-lengths,ultra-low amplitude noise,high stability and ultra-long lifetime.

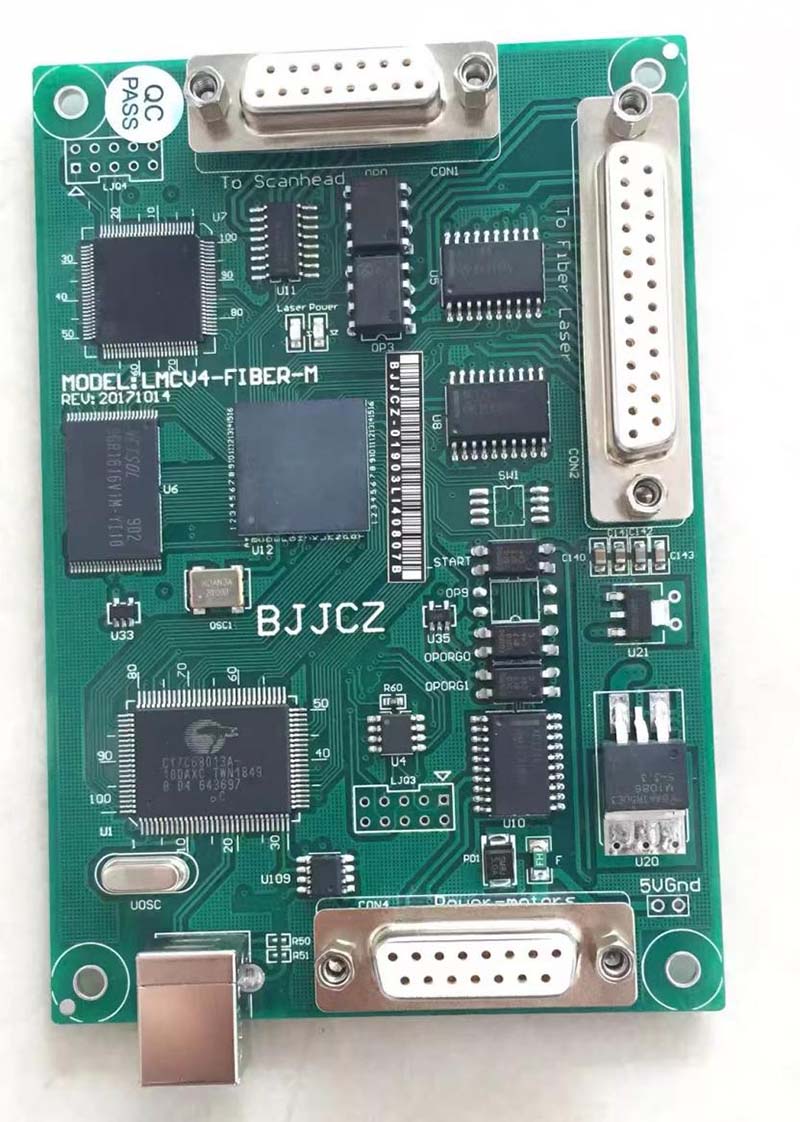

JCZ CONTROL BOARD
1. Powerful editing function.
2. Friendly interface
3. Easy to use
4. Support microsoft windows XP,VISTA,Win7,Win10 system.
5. Support ai,dxf,dst,plt.bmp,jpg,gif,tga,png,tif and other file formats.
Double red light pointer
When two red light coincides best focus,Double red light pointer help customers make focus quickly and easily.
Fixture
1. Easy to put kinds of materials on the worktable.
2. There are multiple flexible screw holes on the worktable convenient for customized installation.
